Understanding SWIR (Short Wavelength Infrared) Imaging

Introduction to SWIR

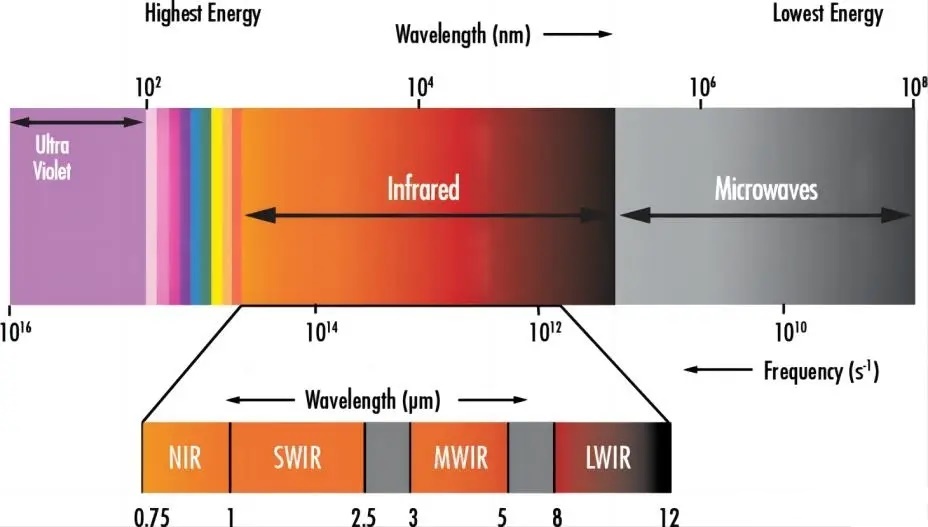

Short Wavelength Infrared (SWIR) imaging, refers to the range of electromagnetic wavelengths between 900 nm and 2500 nm. It sits just beyond the visible spectrum and overlaps with the near-infrared (NIR) region.

SWIR imaging has gained increasing attention due to its unique ability to penetrate different materials. It reveals features that are invisible to the human eye or conventional visible-light cameras.

This capacity to interact with materials in specific ways provides an advantage over other forms of infrared imaging. Such as mid-wave infrared (MWIR) and long-wave infrared (LWIR).

Why SWIR is Important

The primary allure of SWIR imaging lies in its ability to deliver high-quality images with strong contrast. A feature that’s absent in thermal infrared systems (like LWIR), which provide less detailed, more diffuse imagery.

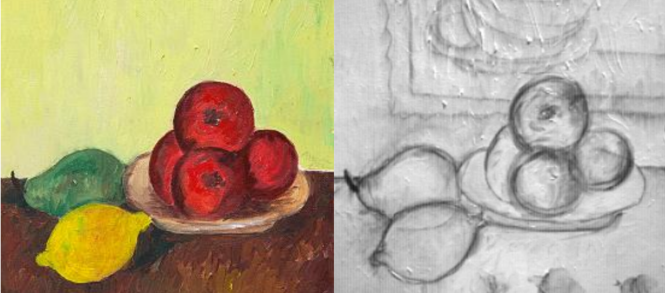

SWIR light behaves more like visible light in that it is typically reflected off surfaces or absorbed by materials. It allows for fine-detail imaging of surfaces, textures, and even subsurface features that are invisible to standard cameras.

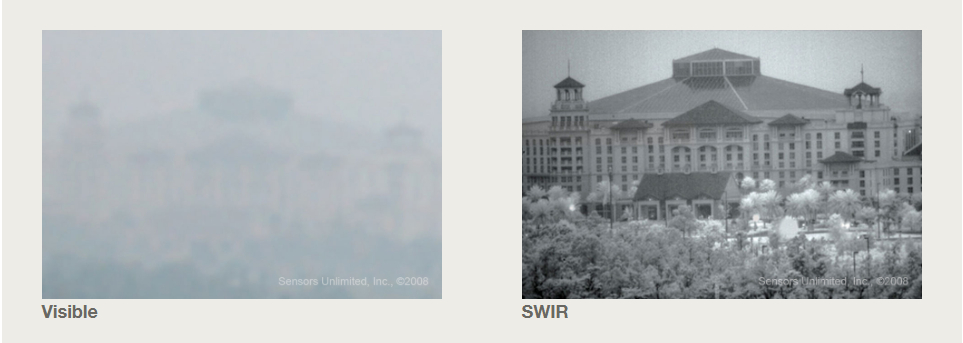

Unlike visible light, however, SWIR light can penetrate a variety of materials, including smoke, fog, and some fabrics. This makes SWIR an ideal solution for surveillance, industrial inspection, and even medical applications where conventional visible imaging fails. It is also much less affected by lighting conditions, offering better performance in low-light or night-time environments.

SWIR Imaging Requirements

One of the critical limitations of SWIR imaging is that traditional imaging sensors can only detect wavelengths up to approximately 1000 nm.

Indium Gallium Arsenide (InGaAs) Sensors are the go-to technology for capturing SWIR light. These sensors effectively cover the range from 900 nm to 1700 nm, which is ideal for most SWIR applications.

However, InGaAs sensors are generally expensive and can be difficult to manufacture in high resolutions. Scaling these sensors to smaller pixel pitches while maintaining high resolution remains a technical challenge.

Moreover, these sensors tend to be more power-hungry and sensitive to noise, requiring specialized electronics and cooling systems in some cases.

To address these challenges, researchers are exploring innovations like Colloidal Quantum Dot (CQD®) sensors to provide more affordable and scalable solutions. These sensors have the potential to reduce the cost of SWIR imaging systems while maintaining their performance and functionality.

Comparison with LWIR and Other Infrared Technologies

SWIR differs significantly from other infrared technologies, notably Long Wave Infrared (LWIR) and Mid-Wave Infrared (MWIR). The key distinction lies in how each spectrum interacts with objects:

LWIR Imaging

LWIR systems primarily capture the thermal radiation emitted by objects, typically in the range of 8-14 µm. These systems are sensitive to the heat emitted by objects,

SWIR Imaging

In contrast, SWIR detects reflected or absorbed light, similar to how visible light interacts with objects. This means that SWIR cameras can capture detailed textures and surface characteristics, making it suitable for applications such as quality control in manufacturing or material characterization in scientific research.

MWIR Imaging

MWIR (3-5 µm) systems are commonly used to detect heat signatures in applications such as military and defense, as well as in industrial and scientific research. While SWIR doesn’t provide the same thermal sensitivity as MWIR, it excels at producing high-contrast images under various lighting conditions

Applications of SWIR Imaging

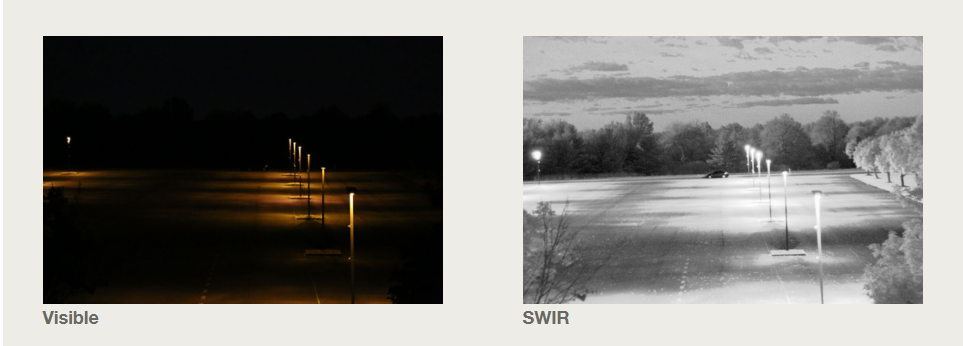

It visually represents how a SWIR camera captures high-resolution images of various materials under low-light conditions, emphasizing the differences between SWIR and visible light imaging.

You can use it to help illustrate the practical applications of SWIR technology in a wide range of industries. Some of the most notable uses include:

Silicon Inspection and Laser Beam Profiling

Manufacturers extensively use SWIR cameras to inspect semiconductor wafers during production, as they provide high-resolution images that detect defects invisible to visible light cameras. SWIR cameras also play a critical role in profiling laser beams, offering insights into beam quality and distribution.

Hyperspectral, Chemical, and Plastics Sensing

SWIR’s ability to detect specific wavelengths allows for hyperspectral imaging, which can be used to analyze the chemical composition of materials. This is especially useful in sorting and recycling plastics, as well as in material detection in agricultural and food industries.

Machine Vision and Agricultural Sensing

In agriculture, SWIR imaging is used for monitoring crop health, detecting diseases, and assessing the moisture content of plants. Its ability to penetrate through light foliage and observe beneath the surface is key to these applications.

Surveillance and Security

SWIR cameras are extremely valuable for surveillance, particularly in low-light or obscured conditions such as fog, smoke, or darkness. Their ability to produce clear images regardless of the lighting condition makes them indispensable in security, military, and law enforcement.

Medical Imaging

The ability of SWIR imaging to penetrate certain biological tissues makes it useful for non-invasive medical imaging, including for detecting tumors and assessing sSWIR imaging can penetrate certain biological tissues, making it useful for non-invasive medical imaging, including detecting tumors and assessing skin conditions. In particular, SWIR systems help image the vascular systems of tissues, aiding in the diagnosis of circulatory issues.

Facial Recognition and Autonomous Vehicles

SWIR has proven useful in facial recognition technology, especially in low-light situations where visible light imaging fails. It also enhances the ability of autonomous vehicles to operate in challenging environments by providing a clear view of the surroundings, even in conditions where traditional cameras struggle.

SWIR Cameras

Acuros® CQD® SWIR Cameras represent the next generation of SWIR imaging technology. These cameras are designed to capture high-resolution images at high frame rates, offering a wide dynamic range and flexible exposure times. Their performance is critical in applications requiring real-time imaging, such as industrial inspections and quality control.

SWIR Sensors: The Future of Imaging

SWIR Vision Systems® has advanced SWIR sensor technology significantly. They build their sensors, which cover wavelengths from 400 nm to 2100 nm, using colloidal quantum dot (CQD®) technology.

This approach involves fabricating thin-film photodiodes directly on silicon wafers, a technique that not only improves the performance of the sensor but also makes it more affordable and scalable.

One of the major breakthroughs in this area is the ability to extend the spectral sensitivity of SWIR sensors, moving beyond the traditional range and offering more versatility. These advanced sensors are paving the way for a more affordable, high-resolution SWIR imaging future.

SWIR Sensor Technology and the Path Ahead

The ongoing development of SWIR sensor technology is poised to revolutionize the field, much in the same way that CMOS image sensors have transformed visible light imaging.

Innovations in materials science, photodetector architecture, and fabrication techniques are pushing the boundaries of what’s possible with SWIR sensors.

With advancements in sensor performance, SWIR systems are expected to become more affordable, offering higher resolution, reduced power consumption, and better noise handling.Advancements in sensor performance are expected to make SWIR systems more affordable, offering higher resolution, reduced power consumption, and better noise handling.

This will expand SWIR’s reach across more applications, from space exploration to consumer electronics, bringing this powerful imaging technology into the hands of a broader range of industries and researchers.

Conclusion

In conclusion, SWIR imaging represents a rapidly evolving and highly versatile field with vast potential across multiple industries.

Its ability to penetrate materials, operate in low-light conditions, and provide high-resolution imaging opens up new possibilities for a range of applications, from industrial inspections to security and medical diagnostics.

As technology advances, the accessibility, affordability, and performance of SWIR systems will continue to improve, expanding their impact and enabling even more innovative solutions in the near future.

The future of SWIR imaging looks brighter than ever, with new applications and breakthroughs on the horizon.
