SWIR Lens | C Mount Lens
We provide various of SWIR Lenses, which are widely used in industrial imaging, agricultural monitoring, solar cell inspection, surveillance, and scientific research. They can detect moisture content, identify materials, and see through certain obstacles like fog or smoke that visible light can’t penetrate.
Key Features
- Low F#
- Low distortion
- Compact Size
- Light Weight
- Ideal for your automation use

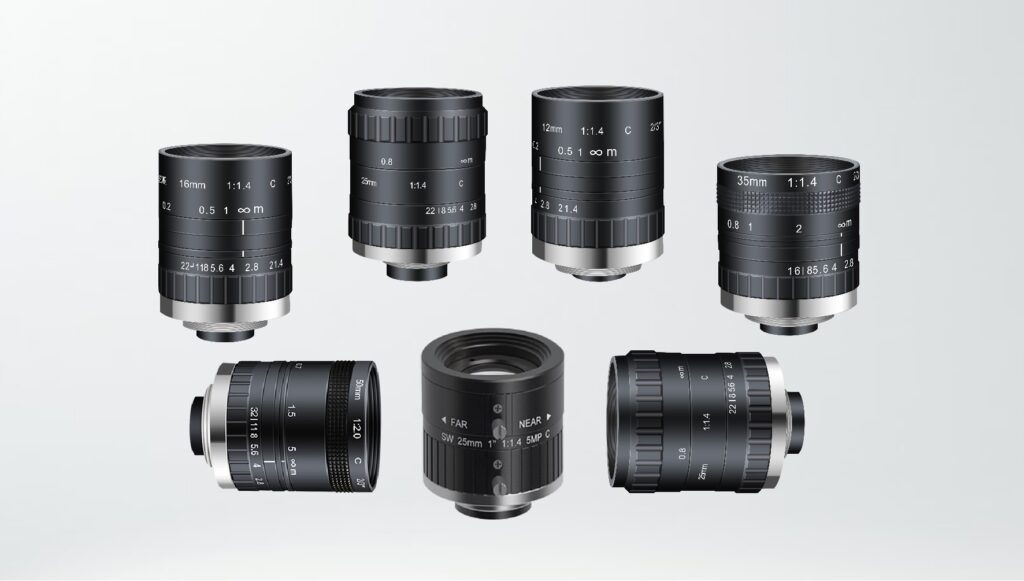

SWIR 2/3“ Manual Iris Fixed Lens
Model number | Sensor format | Megapixel | Focal length(mm) | Aperture (f#) | Iris operation | Mount |
FS0823M2 | 2/3″ | 60lp/mm | 8mm | F1.4 | Manual | C-Mount |
FS1223M2 | 2/3″ | 40lp/mm | 12mm | F1.4 | Manual | C-Mount |
FS1623M2 | 2/3″ | 40lp/mm | 16mm | F1.4 | Manual | C-Mount |
FS2523M2 | 2/3″ | 60lp/mm | 25mm | F1.4 | Manual | C-Mount |
FS3523M2 | 2/3″ | 50lp/mm | 35mm | F1.4 | Manual | C-Mount |
FS5023M2 | 2/3″ | 40lp/mm | 50mm | F2.0 | Manual | C-Mount |
SWIR 1“ Manual Iris Fixed Lens
Model number | Sensor format | Megapixel | Focal length(mm) | Aperture (f#) | Iris operation | Mount |
FS081M4 | 1″ | 60lp/mm | 8mm | F1.4 | Manual | C-Mount |
FS251M5 | 1″ | 80lp/mm | 25mm | F1.4 | Manual | C-Mount |
FS351M5 | 1″ | 80lp/mm | 35mm | F1.4 | Manual | C-Mount |
FS501M3 | 1″ | 50lp/mm | 50mm | F1.4 | Manual | C-Mount |
